Bevel and Mitre Gears

bevel and mitre gears

Bevel and Mitre Gears

Bevel and Mitre Gears

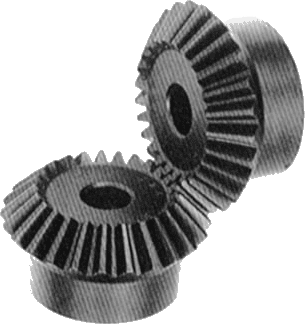

Straight Cut Bevel and Mitre Gears manufactured to the Gleason system in medium carbon steels enable simple right angle drives with reduction ratios up to 4:1, both in imperial DP and metric modular pitch. All gears can be induction or flame hardened for longer life under arduous conditions.

Bevel and Mitre Gears

Two series of gears are offered:

- The original T.D. Cross range to imperial dimensions from 16DP to 5DP pitch of standard Mitre and Bevel gears, stocked in pilot bore form with reboring, keywaying and induction hardening available. When correctly aligned, a bevel gearset with oil lubrication can operate with transmission efficiency up to 98 percent.

- The much improved metric range of gears from 1 Mod. to 5 Mod. pitch to provide the designer with a wider range of selection. All gears manufactured in medium carbon steels for high strength and durability and can be rebored, keywayed and induction/flame hardened for more arduous applications.

Modification of standard gears by reworking the bore and faces, and adding heat treatment often provides the most economical gear solution; but for those applications where standard gears cannot be used, special gears and racks can be manufactured to your specifications. View Special Custom Made Gears
